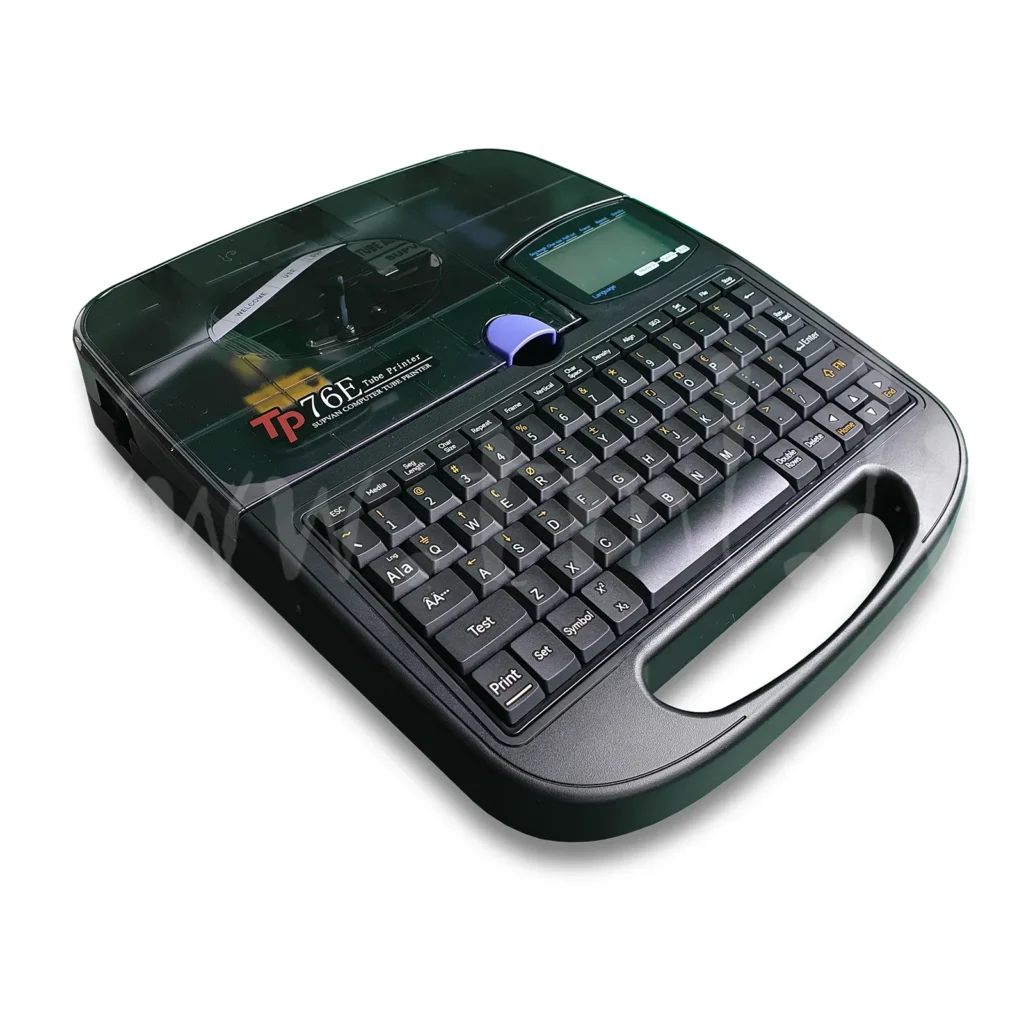

Cable marking printer Supvan TP-76E for printing labels on PVC pipe, heat shrink tubing and adhesive tape.
• Average model performance – print up to 100 m per shift.
• Printing on economical PVC and heat-shrinkable tubes in large reels.
• Cartridges with consumables for quick insertion or replacement.
• Works from a computer and offline. Internal storage for storing text and settings.
• Two cutting modes: full and half
Specifications
| Printing method | Thermal transfer |
| Resolution | 300dpi |
| Printing speed | Tube: 40pcs/min, 20mm/pcs Label: 40pcs/min, 20mm/pcs |
| Ink Ribbon | Black: 100m, White: 80m, Red: 80m |
| Input modes | Alphanumeric, Symbol, Chinese character input |
| Character size | Label: 1-7 Tube: 1-5 |
| Repeat | 1-200 |
| Media cutting method | Automatic half-cutting, Automatic full-cutting |
| Styles | Bold, Italic, Underline, Shadow, Outline, Superscript, Subscript, Border, Border with Shade, Horizontal and Vertical Printing |
| Tape type | Tube, Heat shrink tube, Label |
| Keyboard | 85 keys standard keyboard |
| Dimension (L×W×H) | 320mm×280mm×100mm |
| Weight | 3.2kg (printer only) |
| Power supply | AC adapter (Input voltage: AC 100V-240V 50/60Hz) |
| Display | White back light LCD display; Double column display, 5 lines editing is possible |
| Memory size | 200 Files, 200 paragraph/File (12,000,000 characters maximum) |
| Operating environment | 15℃-35℃ |
| PC interface | USB 2.0 Full-Speed, Professional editing software |
| Tube | PVC tube Φ0.5-Φ6mm, Heat shrink tube Φ0.5-Φ6mm |
| Label | Exclusive cassettes (white, yellow, sliver) Widths: 6mm, 9mm,12 mm.Length:16m |
Options
What is in the box with Supvan TP76E cable printer.
|
 |
Consumables
PVC profiles
PVC profiles in rolls. Colors: white, yellow. Ø 1.3 – 7.0 mm.
Partex PO (non-flammable), Partex POZ (halogen-free).
PVC tube
In rolls. Colors: white, yellow, red, blue, black, green, transparent. Ø 2.0-6.0 mm.
• PVC tube MarkTube
Heat-shrinkable tubes
In rolls, cut. Colors: white, yellow. Ø 2.4-6.4 mm.
Sleeves and containers
Plastic sleeves and containers serve as carriers for marking inserts.
Profiles for terminal modules
Print inserts for terminal modules on a profile.
Ribbons (inking ribbon)
|
Self-adhesive tapes
|
Accessories
Adapter for printing on tube
Tube Print Adapter for Supvan TP Series Printers.
Adapter for printing on non-adhesive plastic tape
Adapter for printing on non-adhesive plastic tape for Supvan TP series printers.
Cutter
Replacement blade for Supvan TP series printers.
Tube Cleaner
Replacement Print Tube Adapter Cleaner for Supvan Printers TP series.
Vertical external unwinder
Universal external unwinder for reels and rolls.
• body material: metal
• disc material: plastic
• coil width up to 110 mm
• coil diameter up to 400 mm
• landing inner diameters of coils: 22, 75 and 93 mm
Horizontal external unwinder
Universal external unwinder for reels and rolls.
• body material: plastic
• bobbin inner diameter: 38.1 mm
