FeaturesPossibilitiesRequest

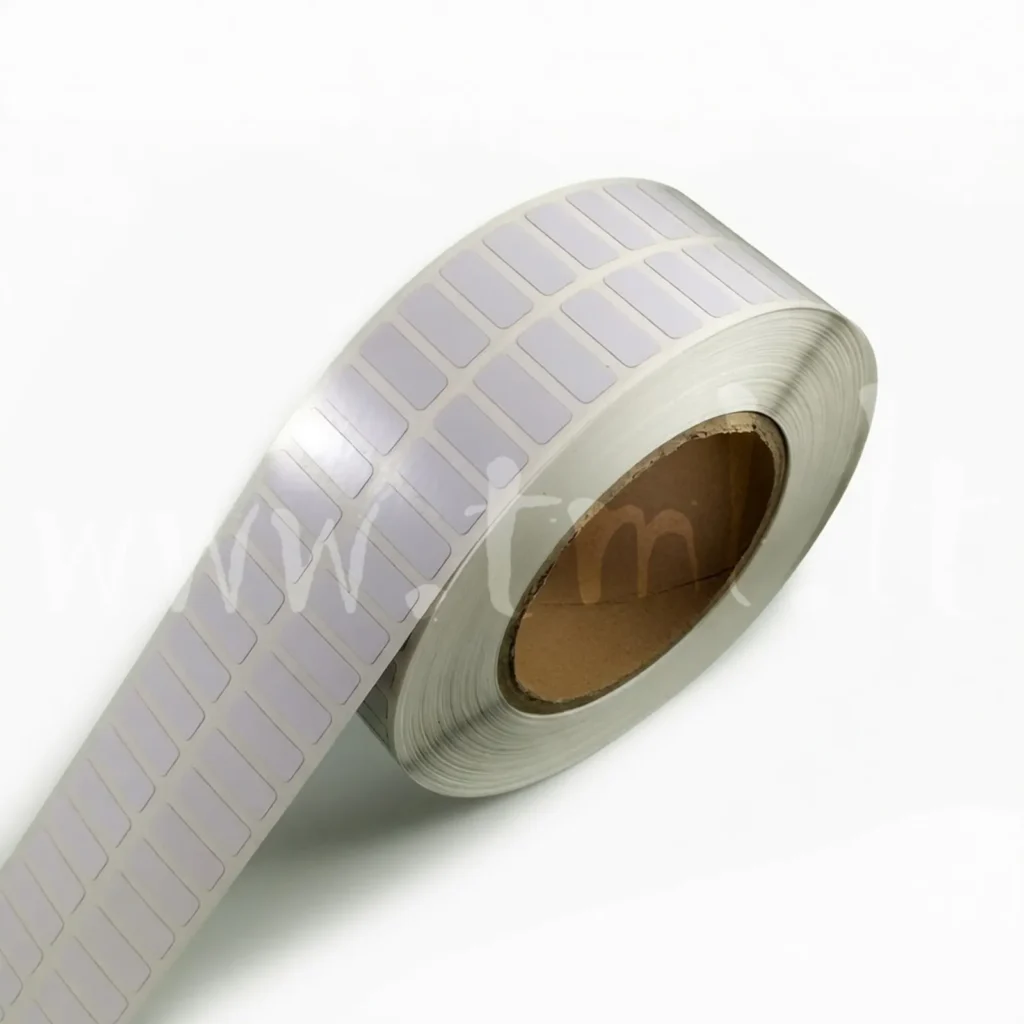

| Main application | Identification label |
|
Technological labeling of electronic modules, that are exposed to high temperatures and corrosive media during the production process. Marking of equipment, that is exposed to constant temperatures above 200°C. Main users: manufacturers of electronic modules and components. |
|
| Material type | Polyimide, 50 microns |
| Optimal material for technological marking of printed circuit boards during assembly. Has excellent temperature and chemical resistance. Halogen free. Complies with industry standards (Pb Free, RoHS, Halogen Free, UL). | |
| Operating temperature | From -40°С to +125°С (up to 5 min +260°С, up to 90 s + 300°С) |
| The constant impact of this temperature does not change the properties and appearance of the label. | |
| Adhesive (adhesive layer) | Reinforced |
| Reinforced acrylic adhesive, polymerising under pressure. For rough and low-energy surfaces. | |
| Color and appearance | White |
| Ensures high contrast of barcodes, Data Matrix codes and graphics. | |
| Surface coating | Matt smooth |
| Matt coating suitable for thermal transfer printing using resin-ribbons (see list of recommended ribbons). The printed image is resistant to high temperature and washing during the process of production process of the printed circuit boards. | |
| Labeling recommendations | |
| For best result, it is recommended to apply the label on a clean, degreased, dry surface, press or roll it with a rubber roller, and incubate for 24 hours at room temperature. | |
Possibilities
• Labels of any dimensions and shapes
• Ordering – from one label
• The sealing stickers can be equipped with additional security elements – with numeric data, microfiber, adhesive UV pigmentation, individually hidden image, guilloche pattern background, foil fragments, holograms, “chamelion” laminate, etc.
• Processing of materials according to non-standard tasks.
• Free samples for testing.
Labels can be of various dimensions and contents – it is our job to make a label in accordance with the specification you have provided.
 |
 |
 |
|
| View | Blank labels | Labels with preprint | Prepaired labels |
|---|---|---|---|
| Using graphic image* | + | + | |
| Suitable for self printing** | + | + | |
| Additional surface finish *** | + |
* Text, logo, graphics, barcode, serial number
** Labels in rolls for thermal transfer printers and stickers on A4 sheets for use with office laser printers
*** Lamination, decorative laminate, foil, wax filler
