Label printer cab MACH 4S

cab MACH4S basic

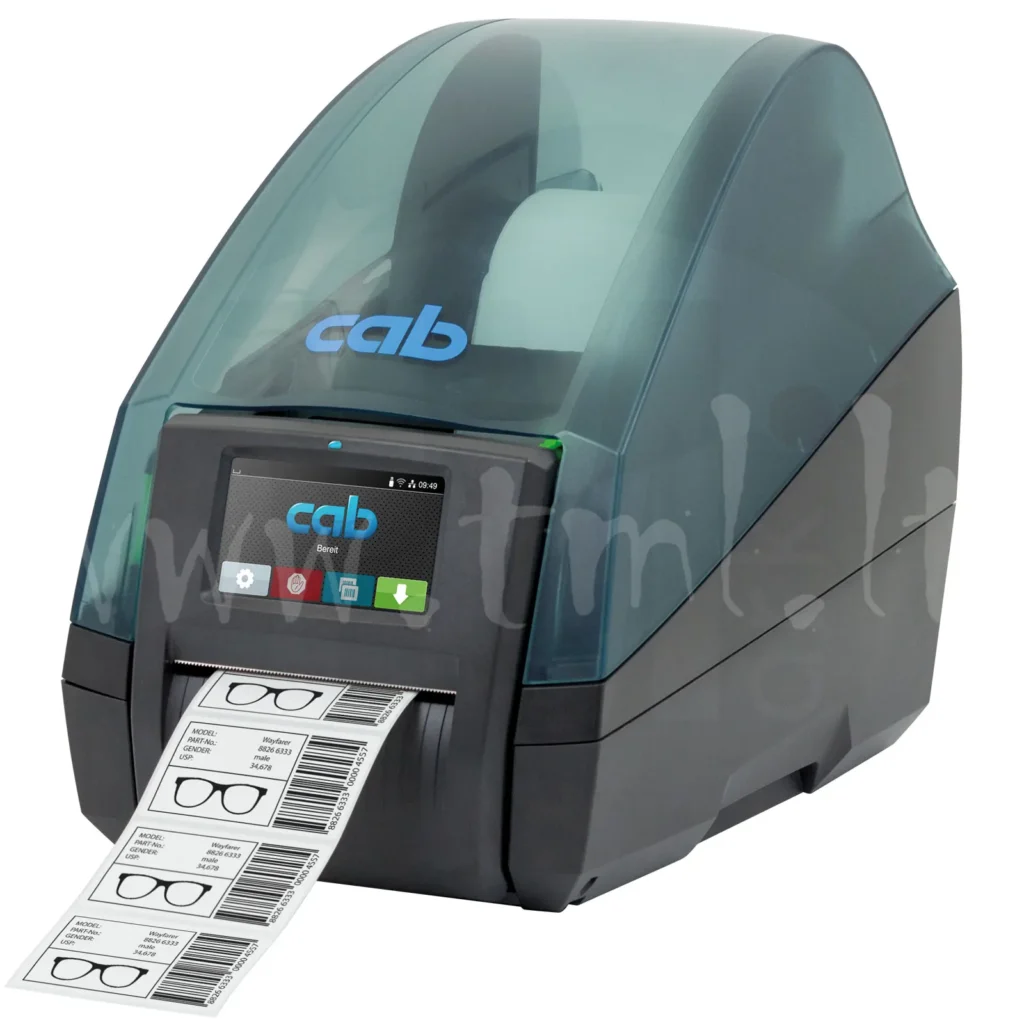

Label printer cab MACH4S basic version

ModelsTechnical dataSpare partsFeaturesVideo

SKUNamePrinting resolutionPriceBuy
5984630Label printer cab MACH 4S - 4.3, 203 dpi, Basic203 dpi1,290.00
5984631Label printer cab MACH 4S - 4.3, 300 dpi, Basic300 dpi1,390.00
cab-mach4sLabel printer cab MACH 4S - 4, 300 dpi, Basic300 dpi1,350.00
5984633Label printer cab MACH 4S - 4, 600 dpi, Basic600 dpi1,610.00
5984634Label printer cab MACH 4S - 4.3, 203 dpi, Peel-off unit203 dpi1,350.00
5984635Label printer cab MACH 4S - 4.3, 300 dpi, Peel-off unit300 dpi1,450.00
5984636Label printer cab MACH 4S - 4, 300 dpi, Peel-off unit300 dpi1,410.00
5984637Label printer cab MACH 4S - 4, 600 dpi, Peel-off unit600 dpi1,670.00
5984638Label printer cab MACH 4S - 4.3, 203 dpi, Cutter203 dpi1,650.00
5984639Label printer cab MACH 4S - 4.3, 300 dpi, Cutter300 dpi1,750.00
5984640Label printer cab MACH 4S - 4, 300 dpi, Cutter300 dpi1,710.00
5984641Label printer cab MACH 4S - 4, 600 dpi, Cutter600 dpi1,970.00

Technical data

Models MACH 4S/200 MACH 4S/300 MACH 4S/600
Print method Thermal transfer
Printable resolution, dpi 203 300 600
Print speed, mm/s From 50 to 200 From 50 to 200 From 50 to 100
Print width up to, mm 104 105,6 105,6
Material thickness, mm From 0,055 to 0,8
Label size From 6 x 5 mm to 106 x 1000 mm
Carrier material width From 25 mm to 120 mm
Ribbon roll diameter up to 72 mm (about 360 m)
Label roll outside diameter up to 205 mm
Interfaces Serial RS232, USB 2.0, Ethernet 10/100, 2 USB for Service Key, USB memory stick, keyboard, barcode scanner, USB Bluetooth adapter, USB WLAN stick
Software Cablabel R2+ for label designing and printing; Windows, Mac, Linux drivers

Spare parts

Thermal heads

SKUNamePriceBuy
5430031+cab MACH print heads - MACH1, 203 dpi, thermal transfer130.00
5430032+cab MACH print heads - MACH2, 203 dpi, thermal transfer130.00
5430033+cab MACH print heads - MACH1, MACH2, 300 dpi, thermal transfer195.00
5977382.001+cab MACH print heads - Mach4S, 203 dpi, direct thermal, thermal transfer390.00
5977383.001+cab MACH print heads - Mach4S, 300 dpi, direct thermal, thermal transfer490.00
5977444.001+cab MACH print heads - Mach4S, 300 dpi, thermal transfer450.00
5977380.001+cab MACH print heads - Mach4S, 600 dpi, thermal transfer730.00

Press rollers

SKUNamePriceBuy
5984649.001++cab MACH print rollers - DR4, Mach4S60.00
5984223.001++cab MACH print rollers - DR4-M25, Mach4S70.00
5984224.001++cab MACH print rollers - DR4-M50, Mach4S70.00
5984228.001++cab MACH print rollers - DR4-M80, Mach4S70.00
5540896.001++cab MACH print rollers - DR4, Mach460.00

Full list of parts

Full list of spare parts for cab Mach 4s printers

Part number Description In a package, pcs.
5977444.001 Thermal head / print head / Printhead 4/300 1
5977380.001 Thermal head / Printhead / Printhead 4/600 1
5977382.001 Thermal head / Printhead / Printhead 4.3/200 1
5977383.001 Thermal head / Printhead / Printhead 4.3/300 1
5984649.001 Print roller / Drive Roller 1
5540606.002 Swing Arm 1
5540607.001 Unlocking Device 1
5540613.001 Gear Wheel Z30 1
5540615.001 Gear Wheel Z26 1
5540617.001 Foot 5
5540624.001 Gear Wheel Z38 1
5540626.002 Gear Rack 1
5540628.001 Threaded Rod 1
5540629.001 Holder 1
5540630.001 Set Screw 1
5540631.002 Set Wheel 1
5540641.001 Axle 1
5540646.001 Washer 5
5540648.001 Washer 5
5540649.001 Friction Disc 5
5540654.001 Axle 1
5540660.001 Gear Wheel Z14 1
5540666.001 Peel-off Edge 1
5540668.001 Axle 1
5540669.001 Transport Locking Roller 1
5540672.001 Spring Guide 1
5540681.002 Cover 1
5540682.002 Cover 1
5540683.002 Gear Rack 1
5540684.002 Guide 1
5540687.001 Spring 1
5540688.001 Spring 1
5540690.002 Adapter 1
5540701.001 Ribbon Sensor Wheel 1
5540703.001 Holder 1
5540869.001 PCB Reflex Sensor 1
5540890.001 Tensioning Wheel 1
5540891.001 Attachment Wheel 1
5540898.001 PCB See-through Sender 1
5540940.001 Cover Plate 1
5540941.002 Frame 1
5540949.001 Unlocking 1
5540978.001 Slipping Clutch 1
5541078.001 Washer 5
5541081.001 Antistatic Brush 1
5541112.001 Upper Blade 1
5541113.001 Lower Blade 1
5541114.001 Paper Guide 1
5541115.001 Clock Wheel 1
5541116.001 Screw 1
5541118.001 Eccentric 1
5541119.001 Conrod 1
5541120.001 Bushing 1
5541174.001 Spring 1
5541208.002 Cover 1
5550611.001 Power Cable Type E+F 1
5551162.001 Power Supply 1
5551353.001 PCB CPU X4.2 1
5551402.001 PCB Ribbon Sensor 1
5901655.001 Cable USB 1
5902007.001 Screw DIN912-M3x6 10
5902072.001 Screw DIN7985-M2x8 10
5902144.001 Screw DIN7984-M3x5 10
5902414.001 Screw EJOT-PT-K30x12 10
5902505.001 Nut DIN934-M3 10
5902592.001 Screw DIN7984-M4x10 10
5902817.001 Screw sim. ISO7380-M4x6  10
5902873.001 Screw DIN7991-M3x6 10
5902940.001 Screw DIN912-M3x18 10
5903004.001 Washer DIN125-A3.2 10
5903507.001 E-Ring DIN6799-3.2 10
5903525.001 E-Ring DIN 6799-4 10
5903528.001 Snap Ring G5 10
5905019.001 Spring 10
5905093.001 Spring 10
5906125.001 Damper 1
5906132.001 Spring 10
5906136.001 Spring 5
5906143.001 Spring 10
5906168.001 Spring 10
5906209.001 Ferrite 1
5954132.001 Strip 5
5955015.001 Switch 1
5955040.001 PCB See-through Receiver 1
5955074.001 Roller 10
5977326.001 Cable Power Supply 1
5977481.001 Pivot Arm 1
5984296.001 Covering Hood 1
5984297.001 Cover 1
5984298.001 Margin Stop 1
5984299.001 Roll Retainer 1
5984603.001 Cover 1
5984604.001 Printhead Holder 1
5984607.001 Base Tub 1
5984610.001 Transport Module 1
5984611.001 Stepper Motor 1
5984612.001 Frame Module 1
5984613.001 Axle 1
5984614.001 Locking Washer 1
5984615.001 Print Module 1
5984642.001 Control Panel B 1
5984643.001 Control Panel P 1
5984644.001 Control Panel C 1
5984645.001 Display 1
5984646.001 Dispense Module 1
5984647.001 Ribbon Core 1
5984648.001 Roll Retainer 1
5984650.001 Cutter Module 1
5984651.001 Base Plate 1
5984654.001 Shaft 1
5984658.001 Drive 1
5984664.001 Front Bezel 1
5984666.001 Swing 1
5984667.001 Chassis 1
5984668.001 Plate 1
5984673.001 Clamp 1
5984685.001 PCB Present Sensor 1
5984686.001 Cable Present Sensor 1
5984687.001 Cable Cutter 1
5984688.001 Cable Display 1
5984689.001 Cable Reflex Sensor 1
5984690.001 Cable See-through Receiver 1
5984691.001 Cable Sensors 1
5984692.001 Cable Control Panel 1
5984693.001 Cable Printhead 1
5984699.001 PCB Coupling 1
5984700.001 Ventilator 1
9109299.001 Packaging 1

Features

Etikečių spausdintuvas MACH 4S 300B atidarytas
1. Cover with a large panoramic window
It can be opened wide. The integrated damping mechanism provides smooth closing. Label stock is visible at any time.
2. Roll holder
The label roll is put onto the holder and, at this, is automatically centered. Materials of different widths can be placed within the box.
3. Ribbon holder
The ribbon is pushed onto the spring-mounted holder and is centered by means of a margin stop and the position indication. The insertion in the print mechanics is simple and comfortable.
4. Print mechanics
It opens at the push of a button and offers easy access.
5. Print heads
All print heads are freely interchangeable. They are automatically detected and calibrated by the CPU. Major data sucha s running performance, maximum operating temperature and heat energy are directly stored in the print head. The data can be read at the plant.
6. Gap sensor
It is arranged for labels or punch marks and end of material as well as for print marks in a centered position. In case of multi-track labels, you can switch to a sensor that is shifted 10 mm to the left.
7. Material guide
With the lateral retaining wheel the width is adjusted. At this, the labels are automatically centered.
8. Reflective sensor
Labels and end of material as well as print marks are identified by the slideable sensor
9. Print roller DR4
It can be quickly and easily unlocked in few steps for cleaning or replacement. Coating: synthetic rubber
10. Peel-off function (with “P” type)
The carrier tape is lead down behind the operation panel.
The label separates from the carrier tape at the peel-off edge.

Printing in stand-alone operation
This operating mode is the printer’s ability to select and print labels even when it is not connected to a host system.
The label has to be designed with a software such as cablabel S3 or by direct programming with a text editor on a PC. Label formats, texts, graphics as well as database contents are stored on a memory card, a USB memory stick or in the internal IFFS memory.
Only variable data are sent to the printer via a keyboard, a barcode scanner, scales or other host systems and/or recalled by the Database Connector

Video


More videos how to use and maintain thermal transfer printers Mach 4S on official manufacturer’s youtube channel.
