Puty P990
P990 cable ID printer is economical device for marking wires by printing on tubes or on labels for marking of panels, blocks, buttons. Compatible with four types of consumables:
- PVC and heat shrink tubes (2.5–6 mm diameter)
- Continuous film labels, 6 / 9 / 12 mm wide
- Rigid plastic strips, 4 mm wide — for sleeves
Printing is possible directly from the QWERTY-keyboard or via smartphone App or PC software.
ProductsFeaturesSpecificationSoftware
Products
Features

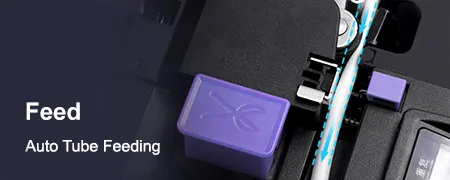

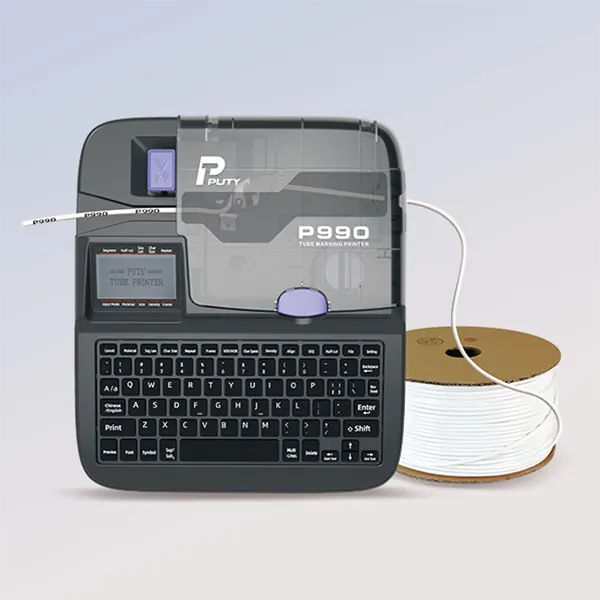

Full-Automatic Tube Marking Printer
Marking Solution for Wire Numbering and Device Labeling
• High-Precision Printing
• 2/4 Line Printing

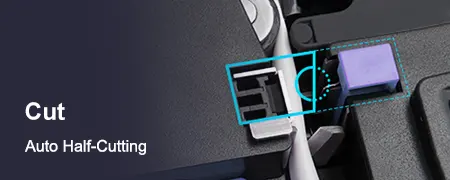

• Auto-Cutting
• Multi-Operation Modes

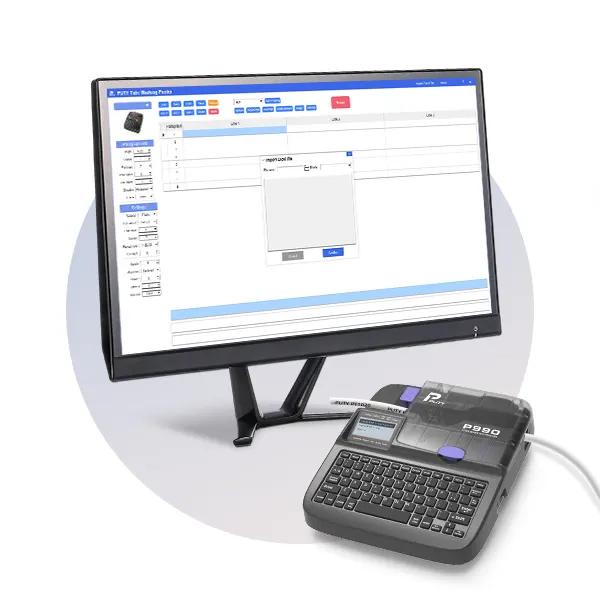

Computer Editing
Excel Import Data Batch Printing
Data Import Print Output High-Speed Efficiency
• Shortcuts “Repeat”, “Serial Number”
• Power-Off Memory
• 100 File Storage
• Auto-Cutting
Accidentional Power-Off Protection
• Auto-Recover Editing Content
• Auto-Recovery After Power Reconnect
• No Need to Reset
• Printing Effects on 4 Materials
Applications
Details
Specification
| Name | Parameter |
|---|---|
| Print Method | Thermal Transfer |
| Resolution | 300dpi |
| Print Speed | 20mm/Segment |
| Media Compatibility | PVC Tube/Label Tape/Heat Shrink Tube/Marking Strip |
| Sleeve Diameter | 0.5mm²～8mm² |
| Heat Shrink Diameter | Ø1.0mm～Ø8.0mm |
| Label Dimensions | 6/9/12mm |
| Operation Mode | QWER Keyboard / PC soft |
| Cutting System | Auto Half-cuting, Manual Full-cuting |
| Font Size | 1 to 8 |
| Segment Length | 6-300mm |
| Copy Quantity | 1-300 |
| Display | LCD White Backlight Screen |
| Power Adapter | DC 12V 3A |
| Weight | 2.0kg |
| Dimensions (W×D×H) | 280×318×80mm |
