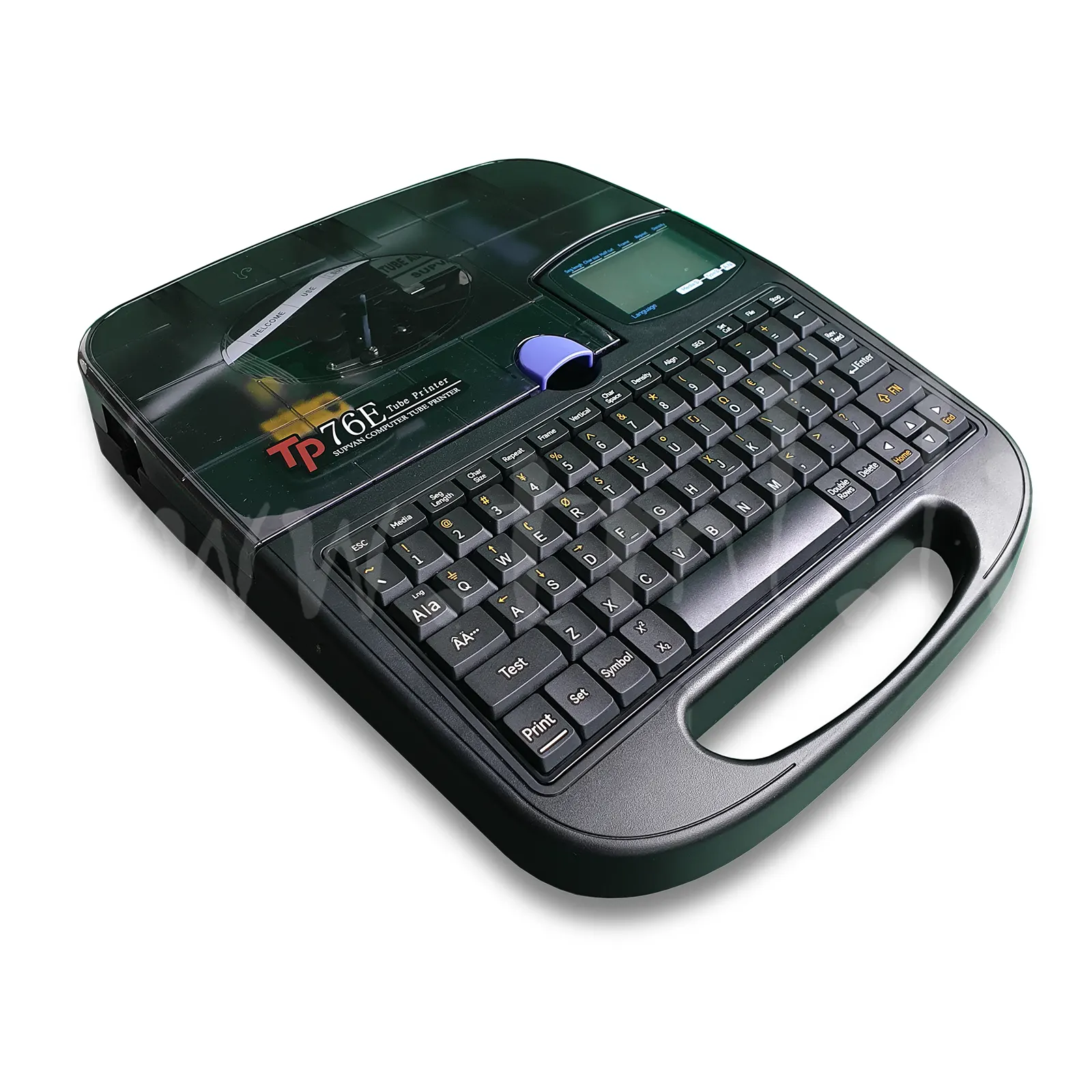

Supvan TP76e printer

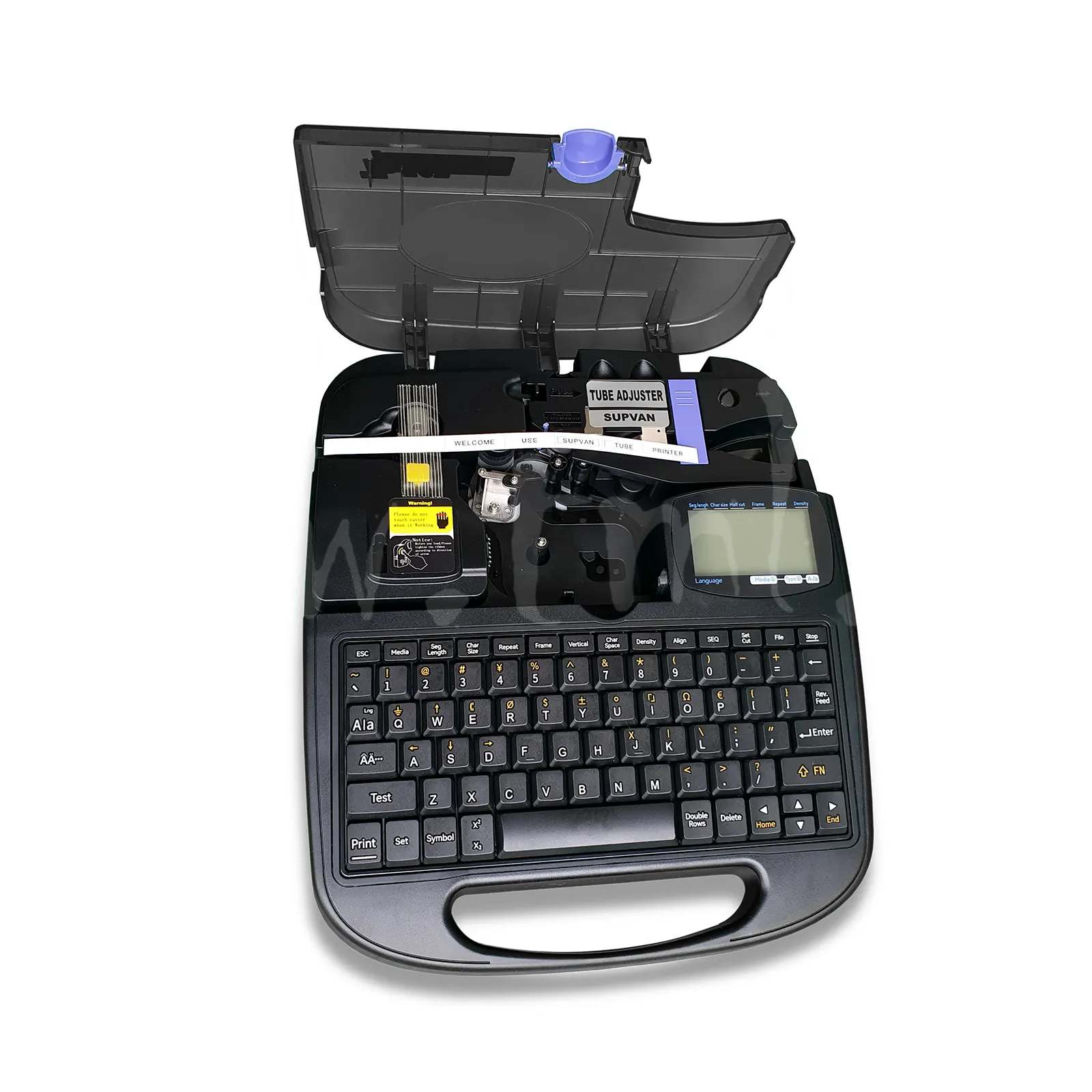

Supvan TP76e opened

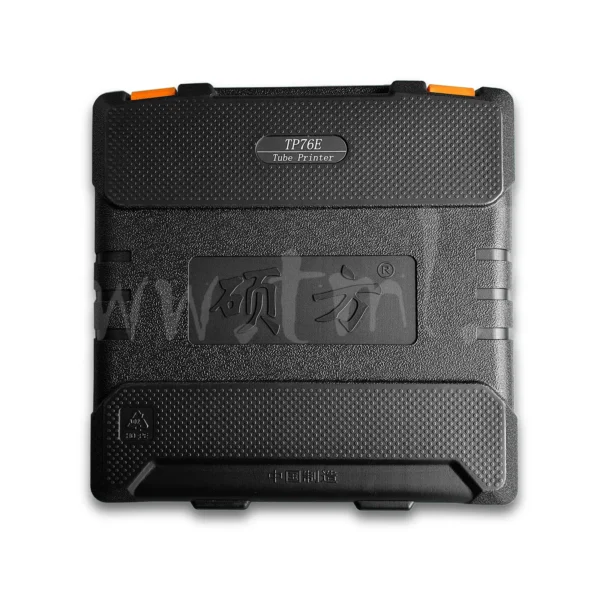

Supvan TP76e case

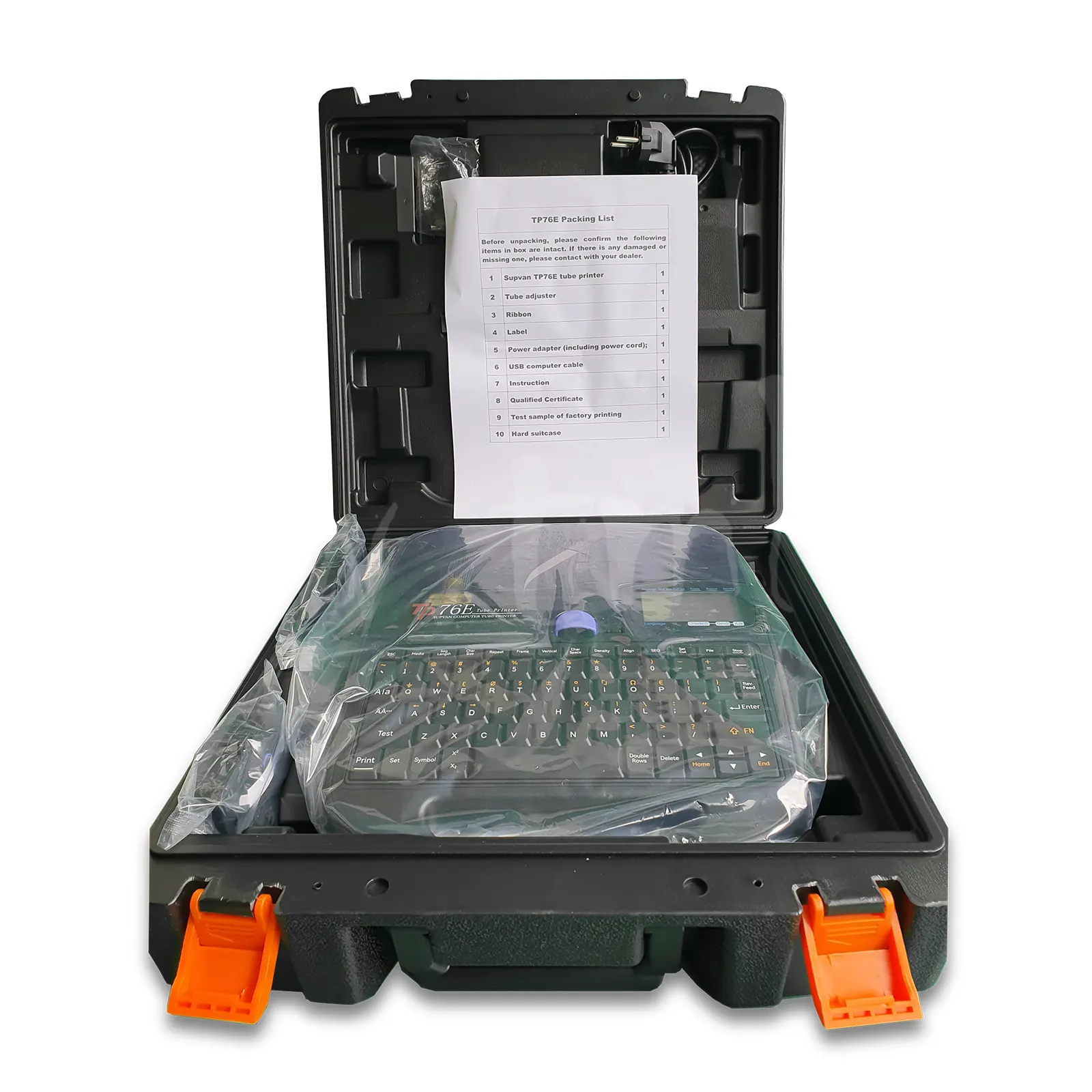

Supvan TP76e case opened

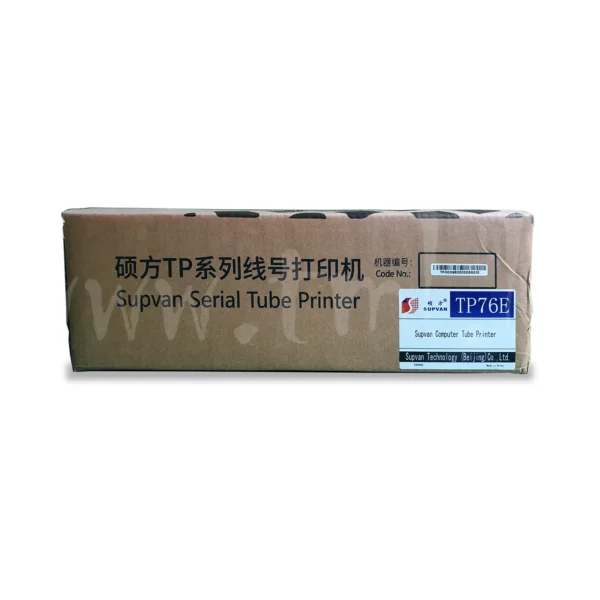

Supvan TP76e package

Cable ID printer Supvan TP-76e

Cable marking printer Supvan TP-76e for printing labels on PVC pipe, heat shrink tubing and adhesive tape.

• Average model performance – print up to 100 m per shift.
• Printing on economical PVC and heat-shrinkable tubes in large reels.
• Cartridges with consumables for quick insertion or replacement.
• Works from a computer and offline. Internal storage for storing text and settings.
• Two cutting modes: full and half

€670.00

Check Availability or Request
SKU: Tp-76E Tag:

Description

Technical dataEquipmentConsumablesAccessoriesApplication

Specifications

Printing method Thermal transfer
Resolution 300dpi
Printing speed Tube: 40pcs/min, 20mm/pcs
Label: 40pcs/min, 20mm/pcs
Ink Ribbon Black: 100m, White: 80m, Red: 80m
Input modes Alphanumeric, Symbol, Chinese character input
Character size Label: 1-7
Tube: 1-5
Repeat 1-200
Media cutting method Automatic half-cutting, Automatic full-cutting
Styles Bold, Italic, Underline, Shadow, Outline, Superscript, Subscript,
Border, Border with  Shade, Horizontal and Vertical Printing
Tape type Tube, Heat shrink tube, Label
Keyboard 85 keys standard keyboard
Dimension (L×W×H) 320mm×280mm×100mm
Weight 3.2kg (printer only)
Power supply AC adapter (Input voltage: AC 100V-240V 50/60Hz)
Display White back light LCD display; Double column display, 5 lines editing is possible
Memory size 200 Files, 200 paragraph/File (12,000,000 characters maximum)
Operating environment 15℃-35℃
PC interface USB 2.0 Full-Speed, Professional editing software
Tube PVC tube Φ0.5-Φ6mm,
Heat shrink tube Φ0.5-Φ6mm
Label Exclusive cassettes (white, yellow, sliver)
Widths: 6mm, 9mm,12 mm.Length:16m

Options

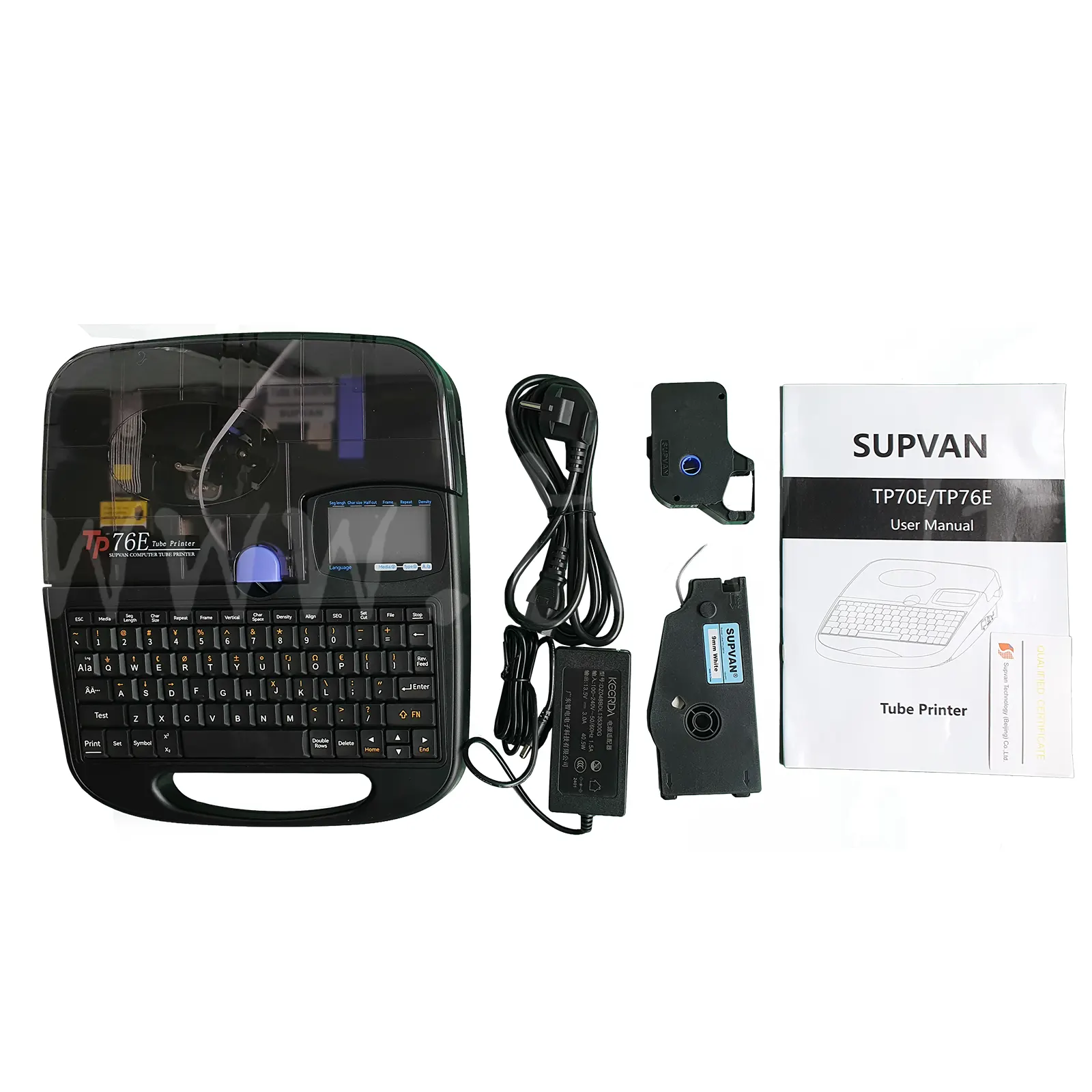

What is in the box with Supvan TP76E cable printer.

Description Photo
• cable printer Supvan TP76e cable printer Supvan TP76e
• tube printing adapter tube print adapter for Supvan TP76e
• test cassette with ribbon (ink ribbon) test cassette with ribbon for Supvan TP76e
• test cassette with self-adhesive tape test cassette with self-adhesive tape for Supvan TP76e
• AC power adapter AC adapter power supply for Supvan TP76e
• USB cable for connecting to a PC USB cable for connecting to a PC for Supvan TP76e
• CD-ROM with software and drivers
• operating manual and instructions
• certificate of quality		 CD-ROM with software and drivers for Supvan TP76e
• hard case hard case for Supvan TP76e

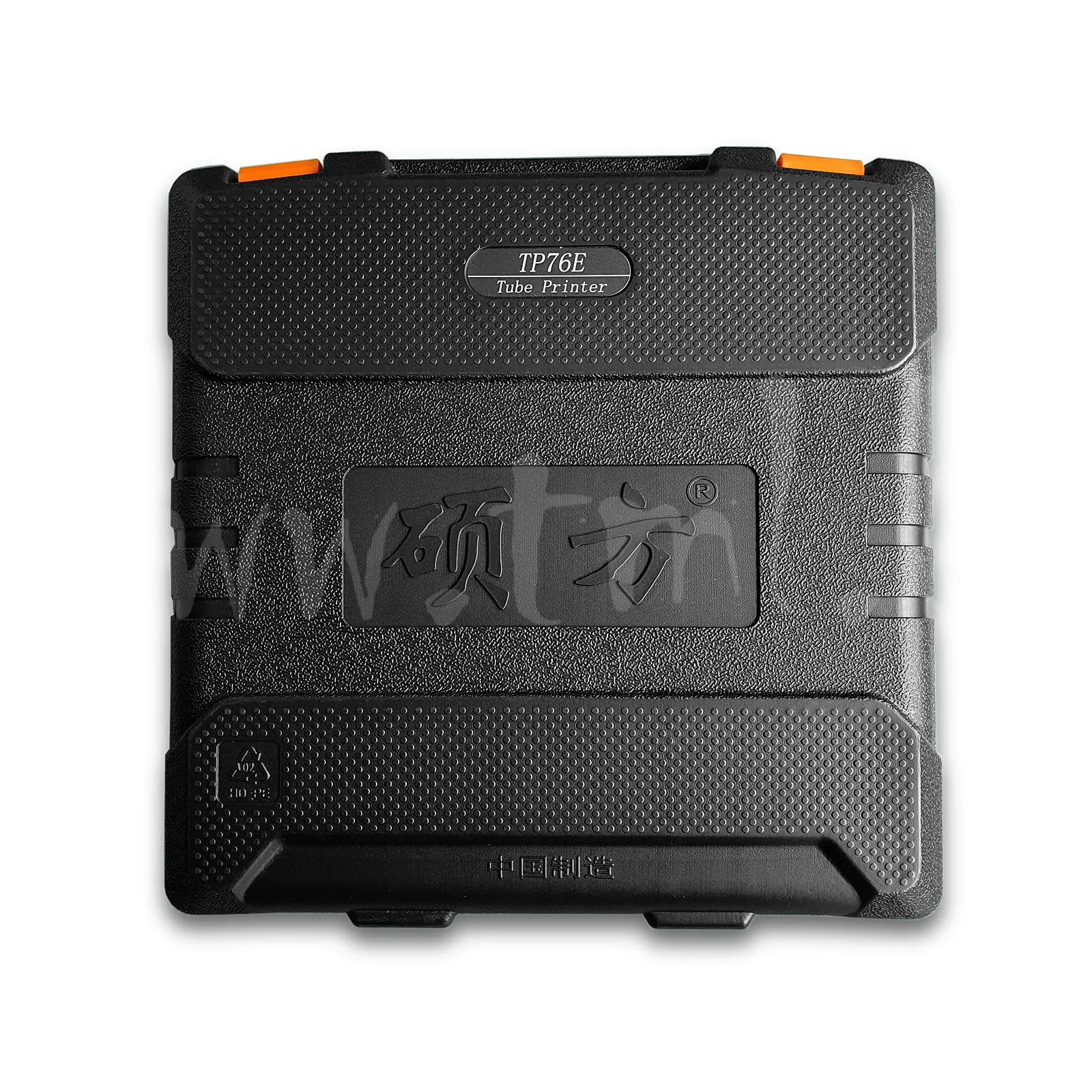

Hard case for Supvan TP76e cable printer

Consumables

Profiles

PVC profiles
PVC profiles in rolls. Colors: white, yellow. Ø 1.3 – 7.0 mm.
Partex PO (non-flammable), Partex POZ (halogen-free).

PVC tube

PVC tube
In rolls. Colors: white, yellow, red, blue, black, green, transparent. Ø 2.0-6.0 mm.
• PVC tube MarkTube

Heat-shrinkable tubes

Heat-shrinkable tubes
In rolls, cut. Colors: white, yellow. Ø 2.4-6.4 mm.

Sleeves and containers

Sleeves and containers
Plastic sleeves and containers serve as carriers for marking inserts.

Profiles for terminal modules

Profiles for terminal modules
Print inserts for terminal modules on a profile.

Ribbons

Ribbons
• black
• red
• white

More details

Self-adhesive tapes

Self-adhesive tapes
• yellow
• white
• silver

More details







Ribbons (inking ribbon)

Article Description
Tp-R100EB Ribbon in cassette, black, 100m
Tp-R80EW Ribbon in cassette, white, 80m
Tp-R80ER Ribbon in cassette, red, 80m







Self-adhesive tapes

Article Description
Tp-l12EW Self-adhesive film tape in cassette, 12mm*16m, white
Tp-l12EY Self-adhesive film tape in cassette, 12mm*16m, yellow
Tp-l12ES Self-adhesive film tape in cassette, 12mm*16m, silver
Tp-l09EW Self-adhesive film tape in cassette, 9mm*16m, white
Tp-l09EY Self-adhesive film tape in cassette, 9mm*16m, yellow
Tp-l09ES Self-adhesive film tape in cassette, 9mm*16m, silver
Tp-l06EW Self-adhesive film tape in cassette, 6mm*16m, white
Tp-l06EY Self-adhesive film tape in cassette, 6mm*16m, yellow
Tp-l06ES Self-adhesive film tape in cassette, 6mm*16m, silver

Accessories

Adapter for printing on a tube

Adapter for printing on tube
Tube Print Adapter for Supvan TP Series Printers.

Adapter for printing on non-adhesive plastic tape

Adapter for printing on non-adhesive plastic tape
Adapter for printing on non-adhesive plastic tape for Supvan TP series printers.

Replacement cutter

Cutter
Replacement blade for Supvan TP series printers.

Pipe cleaner

Tube Cleaner
Replacement Print Tube Adapter Cleaner for Supvan Printers TP series.

External unwinder of coils with a tube, vertical

Vertical external unwinder
Universal external unwinder for reels and rolls.
• body material: metal
• disc material: plastic
• coil width up to 110 mm
• coil diameter up to 400 mm
• landing inner diameters of coils: 22, 75 and 93 mm

External reel unwinder with horizontal tube

Horizontal external unwinder
Universal external unwinder for reels and rolls.
• body material: plastic
• bobbin inner diameter: 38.1 mm

Application

Assembly of electrical panelsAssembly of electrical panels
Marking of terminal modulesMarking of terminal modules
Selection of heat-shrink markers for marking wiresSelection of heat-shrink markers for marking wires
