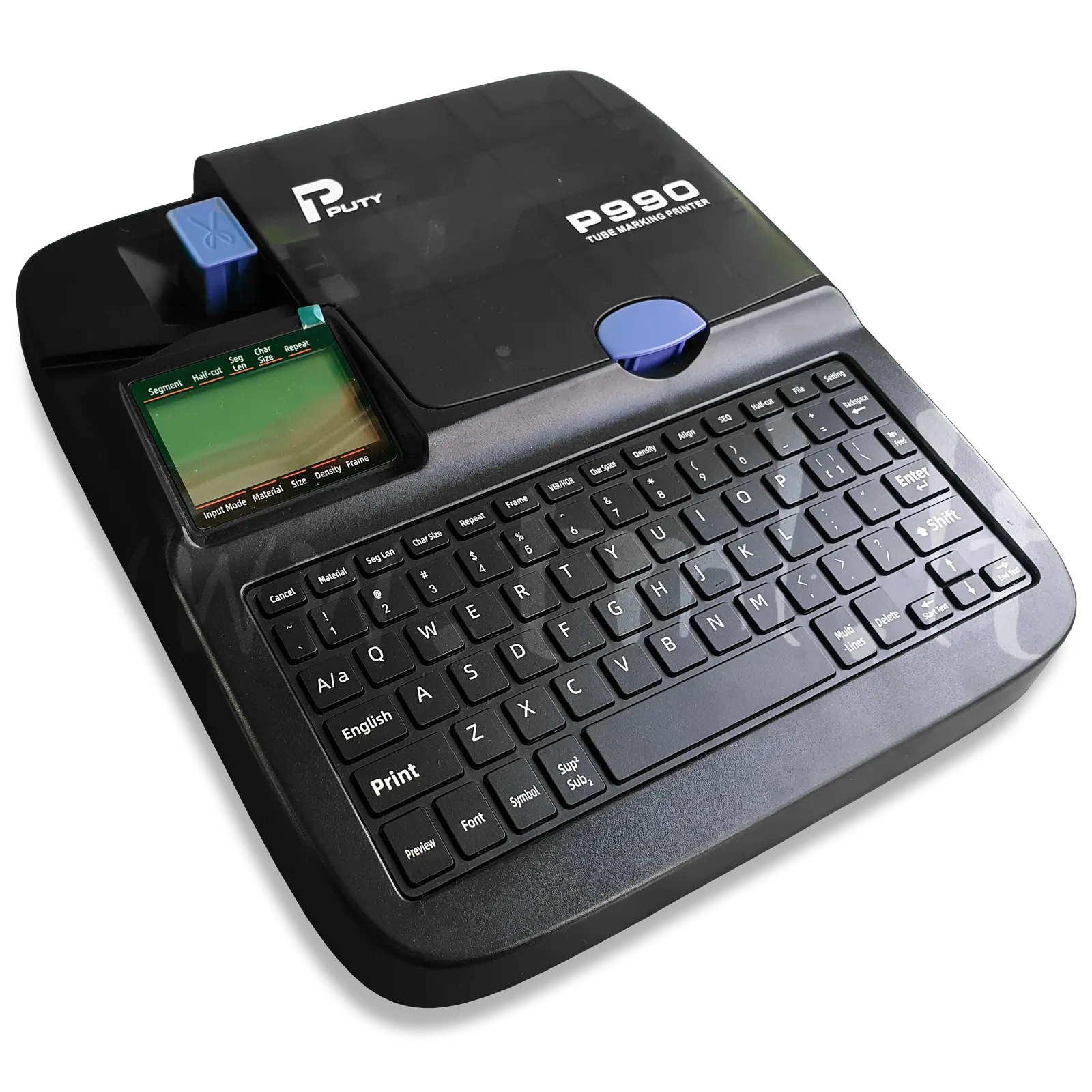

Tube printer Puty P990

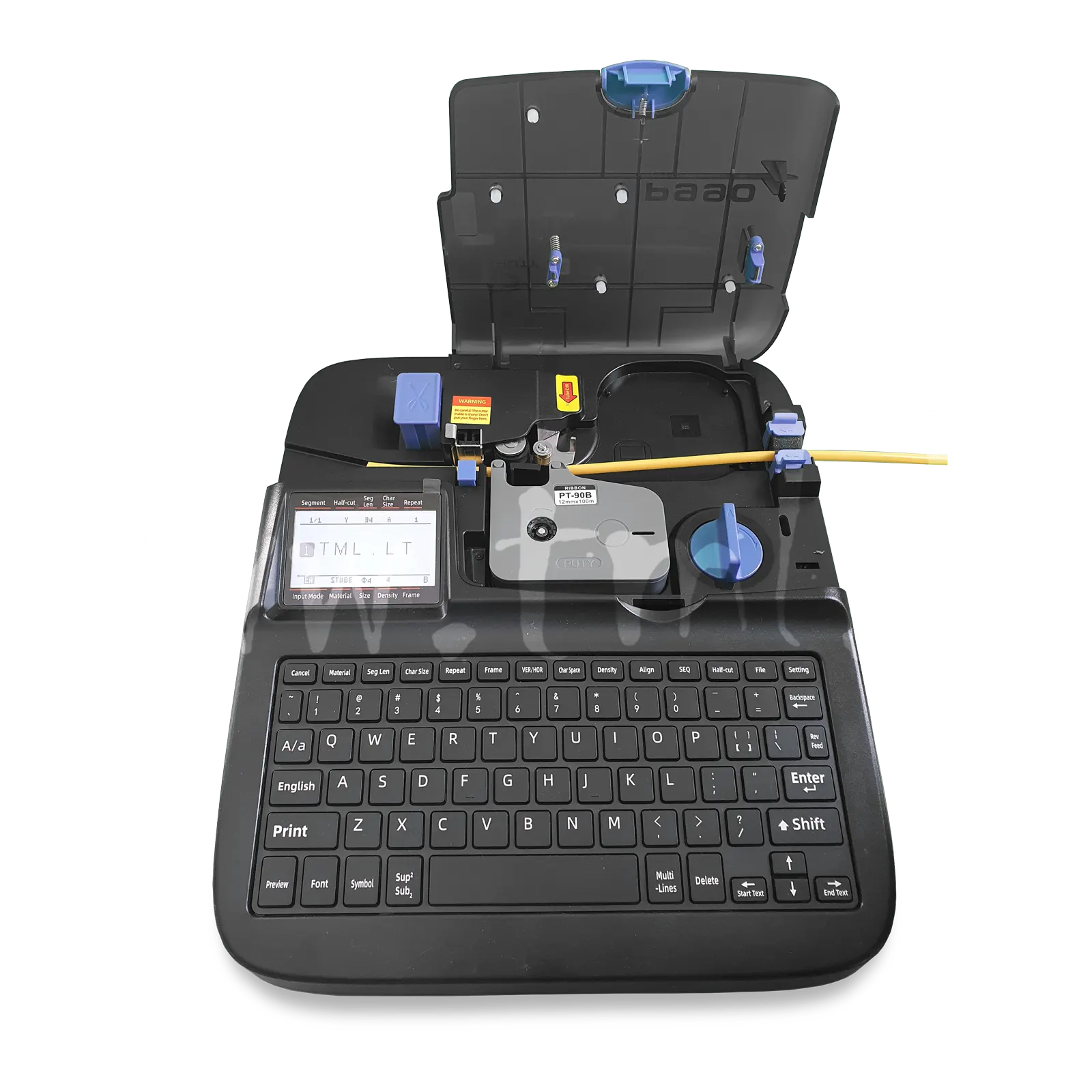

Opened Puty P990

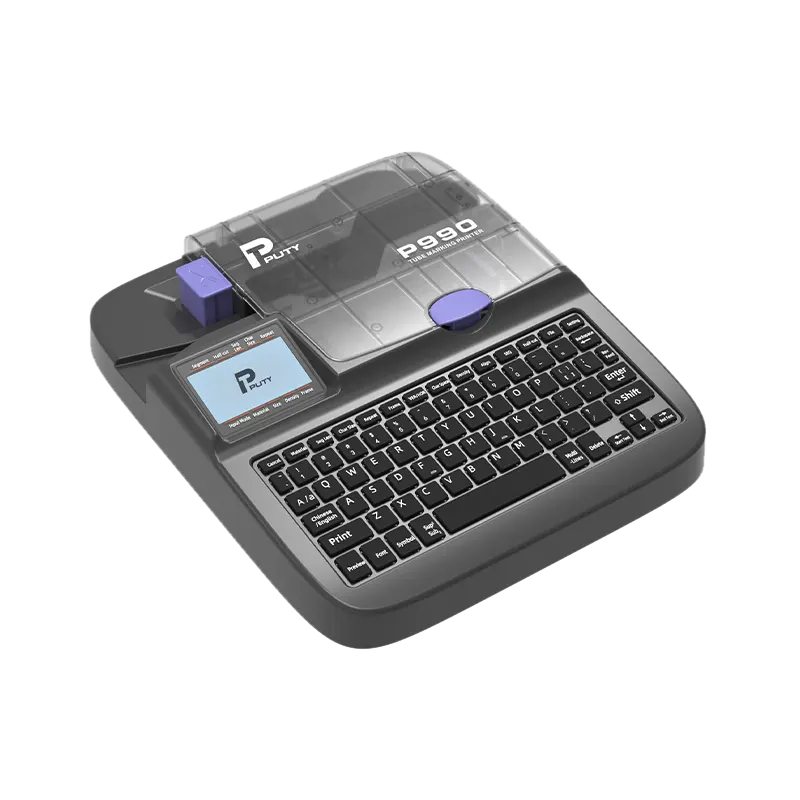

Tube printer Puty P990

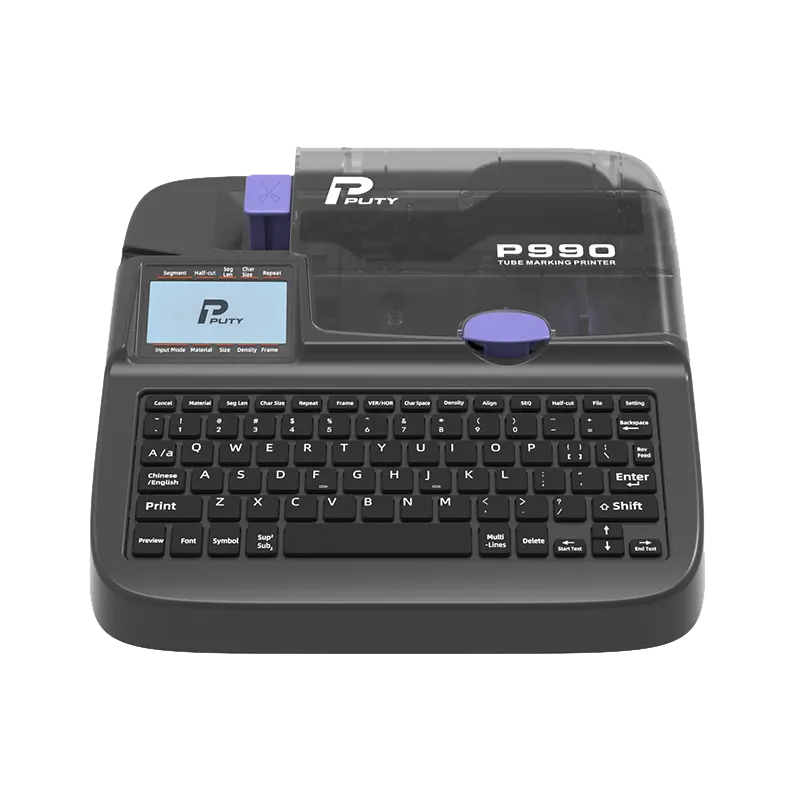

Tube printer Puty P990

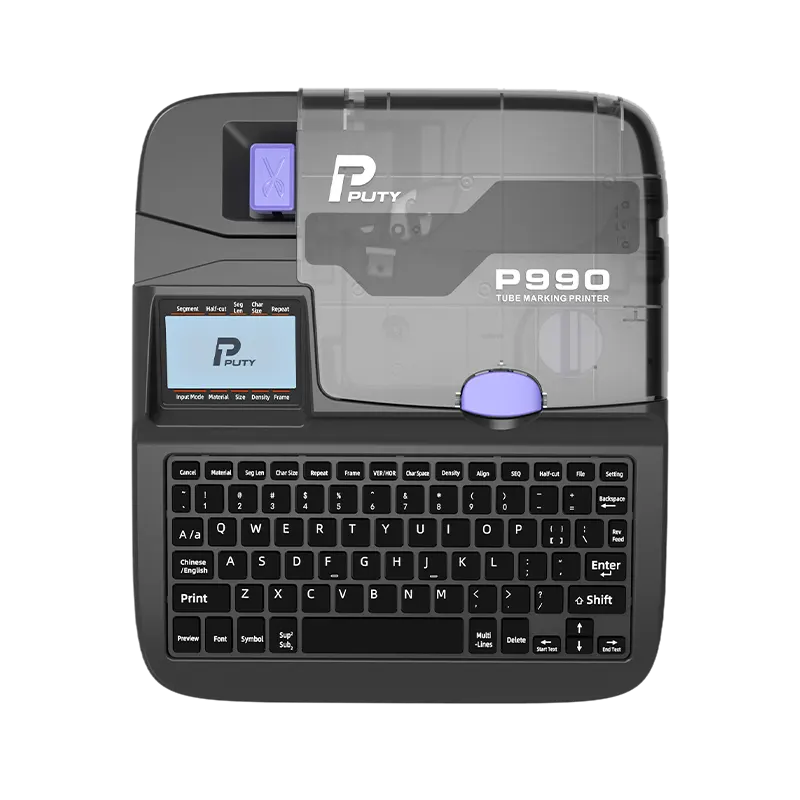

Tube printer Puty P990
Tube printer Puty P990

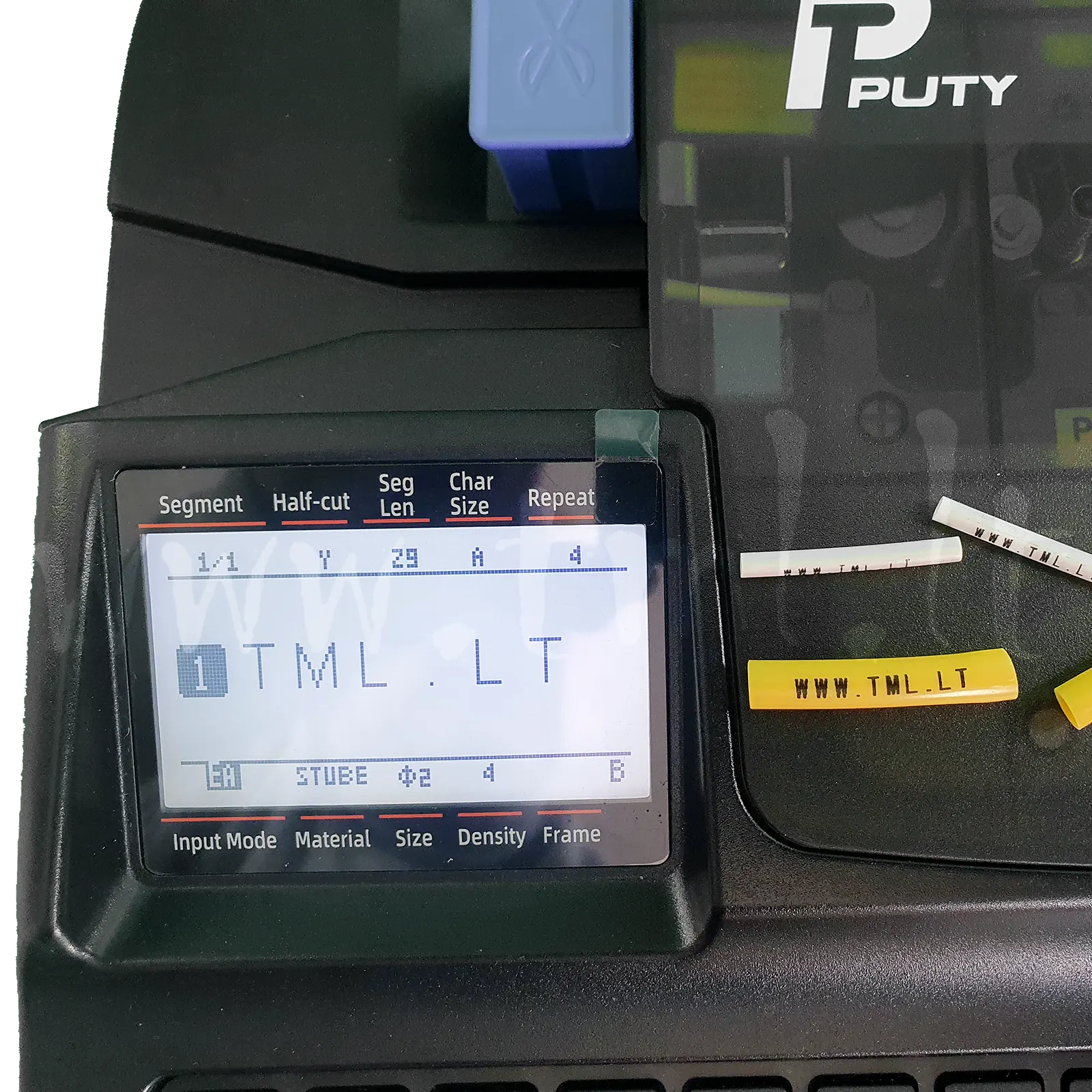

Display Puty P990

Tube printer Puty P990

Cable ID tube Puty P990 tube printer are essential multilingual devices for marking wires up to 8 mm in diameter. Printing is possible directly from the keyboard or via smartphone/PC software. Suitable for cable markers, button and socket labels, and marking strips for transparent sleeve holders.

Industry-leading performance with high printing speed, cleaning function, tape pre-tensioning, and half-cutting modes.

Excel import enables database printing from a PC. The memory holds up to 100 files and allows special character input from the keyboard or PC.

€550.00

Check Availability or Request
SKU: P990 Tag:

Description

Technical dataPackageConsumablesAccessoriesFeaturesSoftware
Name Parameter
Print Method Thermal Transfer
Resolution 300 dpi
Print Speed 20mm/Segment
Media Compatibility PVC Tube/Label Tape/Heat Shrink Tube/Marking Strip
Sleeve Diameter 0.5mm²～8mm²
Heat Shrink Diameter Ø1.0mm～Ø8.0mm
Label Dimensions 6/9/12mm
Operation Mode QWER Keyboard / PC soft
Cutting System Auto Half-cuting, Manual Full-cuting
Font Size 1 to 8
Segment Length 6-300mm
Copy Quantity 1-300
Display LCD White Backlight Screen
Power Adapter DC 12V 3A
Weight 2.0kg
Dimensions (W×D×H) 280×318×80mm

Package

What is in the box.

Supply kit for Puty P990 cable printer.
Description Photo
• cable printer Puty P990 cable printer Puty P990
• test cassette with ribbon (ink ribbon) test cassette with ribbon for Puty P990
• test cassette with self-adhesive tape test cassette with self-adhesive tape for Puty P990
• AC power adapter power supply adapter for Puty P990
• USB cable for connecting to a PC USB cable for connecting to a PC for Puty P990
• hard case hard case for Puty P990
Hard case for cable printer Puty P990

Consumables

Profiles for Puty P990

PVC profiles
PVC profiles in rolls. Colors: white, yellow. Ø 1.3 – 7.0 mm.
Partex PO (non-flammable), Partex POZ (halogen-free). Compatible with Puty P990.

PVC tube for Puty P990

PVC tube
In rolls. Colors: white, yellow, red, blue, black, green, transparent. Ø 2.0-6.0 mm.
• PVC tube MarkTube. Compatible with Puty P990.

Heat-shrinkable tubes for Puty P990

Heat-shrinkable tubes
In rolls, cut. Colors: white, yellow. Ø 2.4-6.4 mm. Compatible with Puty P990.

Sleeves and containers for Puty P990

Sleeves and containers
Plastic sleeves and containers serve as carriers for marking inserts. Compatible with Puty P990.

Profiles for terminal modules for Puty P990

Profiles for terminal modules
Print inserts for terminal modules on a profile. For use with Puty P990.


Ribbons for Puty P990

Ribbons
• black
• red
• white


Self-adhesive tapes for Puty P990

Self-adhesive tapes
• yellow
• white
• silver

Accessories

Cutter

Cutter
Replacement blade for Puty P990.

Unwinder

Unwinder
Smooth flow of the tube as it is printed.

Features

Full-Automatic

Full-Automatic Tube Marking Printer

Marking Solution for Wire Numbering and Device Labeling

• High-Precision Printing
• 2/4 Line Printing
• Auto-Cutting
• Multi-Operation Modes

Computer Editing

Computer Editing
Excel Import Data Batch Printing

Data Import Print Output High-Speed Efficiency

• Shortcuts “Repeat”, “Serial Number”
• Power-Off Memory
• 100 File Storage
• Auto-Cutting

Power-Off Protection

Accidentional Power-Off Protection

• Auto-Recover Editing Content
• Auto-Recovery After Power Reconnect
• No Need to Reset
• Printing Effects on 4 Materials

Applications

Puty P990 applications
Puty P990 applications
Puty P990 applications
Puty P990 applications
Puty P990 applications
Puty P990 applications

Details

Feed
Cut
Print
Clean

Software

Download App

Download PC Software
