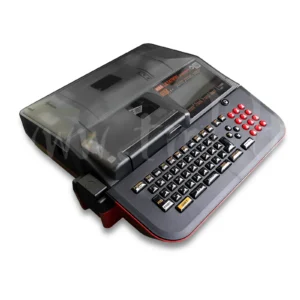

MAX Letatwin LM-550

MAX Letatwin LM-550A/PC

Letatwin LM-550A3 BH/PC cable printer from MAX Co. Ltd – new 2024.
Model LM-550A/PC is out of production – please use the Supvan TP80e, which is similar in function and price.
Cable printer Letatwin LM-550A3 BH/PC is designed for printing cable markers on PVC and heat-shrinkable tube D 1.5-8.0mm and marking terminals with self-adhesive tape 5, 9, 12mm and plastic inserts.
• Average productivity model. Print up to 100m per shift.
• Printing on economical PVC and heat shrink tubing in large spools.
• Cassettes with consumables for quick installation and replacement.
• Ribbon is supplied in economical replacement rollers for installation in a reusable cassette.
• For work indoors and outdoors – equipped with a tube heater, powered by 220V, accumulators and batteries.
• Works from PC and offline. Internal memory resource for storing text and settings.
More about new printer: LETATWIN_LM-550A3

ProductsTechnical dataFeaturesConsumables

Printer MAX Letatwin LM-550A/PC and accesories
SKUSummaryPriceBuy
LM-550/A2

Letatwin LM-550A2/PC cable ID printer

950.00
LM-550/A3

Letatwin LM-550A3 BH/PC cable ID printer

950.00
TP2000

External holder for large economical coils, pcs.

39.00
LM-HC340

Half cutter

16.10
MS-TH-26B

Reel pad

24.00

Tape Cassettes

SKUSummaryPriceBuy
LM90102

Flat profile LM-ID for transparent cable markers, width 4.1mm, PE BG 1.0mm, white, 20m

38.00
LM90245.

Flat profile LM-KM4107 for panels, width 10.7mm, plastic 0.5mm, white, 25m

38.00
LM90245

Flat profile LM-ID for transparent cable markers, width 4.1mm, PE BG 1.0mm, white, 20m

38.00
LM-TP512W

Label cassette tape (Premium) 12mm*16m, white, for LM-550

14.20
LM-TP312W

Label cassette tape (Premium) 12mm*8m, white for LM-390

LM-TP312Y

Label cassette tape (Premium) 12mm*8m, yellow for LM-390

LM-TP512Y

Label cassette tape (Premium) 12mm*8m yellow, for LM-550

8.40
LM-TP505W

Label cassette tape (Premium) 5mm*16m white, for LM-550

11.50
LM-TP305W

Label cassette tape (Premium) 5mm*8m, white for LM-390

LM-TP305Y

Label cassette tape (Premium) 5mm*8m, yellow for LM-390

LM-TP505Y

Label cassette tape (Premium) 5mm*8m yellow, for LM-550

7.00
LM-TP505T

Label cassette tape (Premium) 5mm*8m transparent, for LM-550

8.20
LM-TP509W

Label cassette tape (Premium) 9mm*16m white, for LM-550

13.20
LM-TP309W

Label cassette tape (Premium) 9mm*8m, white for LM-390

LM-TP309Y

Label cassette tape (Premium) 9mm*8m, yellow for LM-390

LM-TP509Y

Label cassette tape (Premium) 9mm*8m yellow, for LM-550

7.80
LM-TP509T

Label cassette tape (Premium)) 9mm*8m transparent, for LM-550

9.40
PT-TP312W

Label cassette tape (Standart) 12mm*8m, white for LM-390

7.10
PT-TP312Y

Label cassette tape (Standart) 12mm*8m, yellow for LM-390

7.10
PT-TP312T

Label cassette tape (Standart) 12mm*8m, transparent for LM-390

7.10
PT-TP312S

Label cassette tape (Standart) 12mm*8m, silver for LM-390

7.10
PT-509W

Label cassette tape (Standart) 5mm*16m white, for LM-550

8.70
PT-TP305W

Label cassette tape (Standart) 5mm*8m, white for LM-390

7.10
PT-TP305Y

Label cassette tape (Standart) 5mm*8m, yellow for LM-390

7.10
PT-509Y

Label cassette tape (Standart) 5mm*8m yellow, for LM-550

5.20
PT-TP305T

Label cassette tape (Standart) 5mm*8m, transparent for LM-390

7.10
PT-TP305S

Label cassette tape (Standart) 5mm*8m, silver for LM-390

7.10
PT-TP309W

Label cassette tape (Standart) 9mm*8m, white for LM-390

7.10
PT-TP309Y

Label cassette tape (Standart) 9mm*8m, yellow for LM-390

7.10
PT-TP309T

Label cassette tape (Standart) 9mm*8m, transparent for LM-390

7.10
PT-TP309S

Label cassette tape (Standart) 9mm*8m, silver for LM-390

7.10

Ribbons

SKUSummaryPriceBuy
LM-IR50W

Ink Ribbon White Premium (70m/Roll, 10rolls/Box), for LM-550

12.20
LM-IR50B

Ink Ribbon Black Premium (110m/Roll, 10rolls/Box), for LM-550

16.00
LM-IR50BP

Ink Ribbon Black Special (110m/Roll, 10rolls/Box), for LM-550

18.00
PT-IR50BH

Ink Ribbon Black Standart (110m/Roll, 10rolls/Box), for LM-550

11.00
LM-RC500

Refillable Ink Ribbon Cassett, for LM-550

7.50
LM-IR300B

Ink ribbon Premium (BLACK) 50m, for MAX Letatwin LM-390

7.70
PT-IR300BH

Ink ribbon black Standart 50M. 5 pieces, for LM-390

7.30


Specifications:

LM550A_Operation_Manual

Printing method Thermal transfer printing
Resolution 300dpi
Printable character height 2, 3, 4 and 6 mm
Permissible diameter of PVC tube From 1,5 to 8,0 mm
Permissible diameter of heat-shrink tube from 2,0 to 6,5 mm
Size of ribbons for printing 5, 9 and 12 mm
Print speed standard mode – 40 mm / s
low-temperature mode – 20 mm / s
Display LCD, 64 x 160 pixels
Printable characters Letters (Latin, Cyrillic alphabet), numbers, special symbols
Keyboard QWERY
Memory 50 files
5,000 characters in file
250’000 characters
Cutting mode Complete cutting manually
Half-cut – software
Power supply DC 12V, 3.0A, through the AC adapter (100V ~ 240V)
Dimensions 295 (D) x 293 (W) x 94 (H) mm
Weight 2,4 kg


Features:
Cable printer installer MAX Letatwin LM 550A PC Cable printer installer MAX Letatwin LM 550A PC
Cable printer installer MAX Letatwin LM 550A PC - built-in cutterCable printer installer MAX Letatwin LM 550A PC – built-in cutter
Display cable printer installer MAX Letatwin LM 550A PCDisplay cable printer installer MAX Letatwin LM 550A PC

Automatic pulling of PVC pipe and tape.

Automatic pulling of PVC pipe and tape.

Printing on
Material to be labeled:
PVC, heat shrink and oval tube;
• Self-adhesive tape;
• Plastic non-adhesive tape.

Cutting the markers
Programming the length of segments:
• for the tube – from 10 to 60 mm;
• for the tape – from 5 to 60 mm.
Continuous printing
Length of continuous printing (max):
• tube – 20 m;
• tape – 5 m.
The length of continuous printing (max) in the mode of multicopy:
• tube – 100 m (up to 30 copies);
• ribbon – 7 m.
Symbols
The height of the applied symbols: 1, 2, 3, 4 and 6 mm.
When printing on a tube from a diameter of 4.2 to 6.5 mm, it is possible to print in 2 lines when using signs with a height of 2 mm.
When printing on a self-adhesive tape with a width of 12 mm, it is possible to print in 3 lines when using signs with a height of 2 mm.
Connecting to a PC

Supported Operating Systems:
• Vista (only 32-bit);
• Windows 7 (32-bit and 64-bit);
• Windows 8 (32-bit and 64-bit);
• Windows 8.1 (32-bit and 64-bit);
• Windows 10 (32-bit and 64-bit).


Consumables

LETATWIN_Consumable_pdf
Max Letatwin new tube introduction

Coloring tapes and cassette

Installing the LM-IR50 ribbon in the LM-RC500 cassette for the MAX Letatwin LM 550A PC printer.

Ribbon LM-IR50 for cable printer installer MAX Letatwin LM 550A PC
Ribbon cassette LM RC500 for printer MAX Letatwin LM 550A PC
